Crawler for Small Pipe Welds

The Phased Array low profile crawler LPS-01 and LPS-02 are compatible with Phased Array ultrasonic flaw detector, which is used to perform circumferential weld inspection on small diameter pipes.

>>Product Enquiry

FeaturesFunctionGalleryDownload

  • Compact, lightweight, portable, water proof and rust-free.
  • Probes and wedges can be quickly and easily changed.
  • Support up to two phased array probes to cover the whole welds at one time.
  • Covers standard pipes with outside diameters ranging from 20.32-114.3mm (0.84-4.5 inch)
  • Can be operated within 15mm clearance,perfect for hard-to-reach area inspection.
  • Encoder precision: 32.6step/mm
  • The probe spacing can be adjusted in the range of 0-55 mm.
  • Crawler can provide stable and constant pressure around the pipe full circumference.
  • Urethane wheels help the crawler have smooth radial movement along the pipe and reduce axial drift.
  • Positive inspection and reverse inspection with high reproducibility and good coupling.
  • With its simple buckle design, just easily buckle up and unbuckle the links for different pipe diameters(No need to disassemble the whole scanner).
  • Two inspection methods: one-side inspection and dual-side inspection.

Two inspection methods: one-side inspection and dual-side inspection

LPS-01

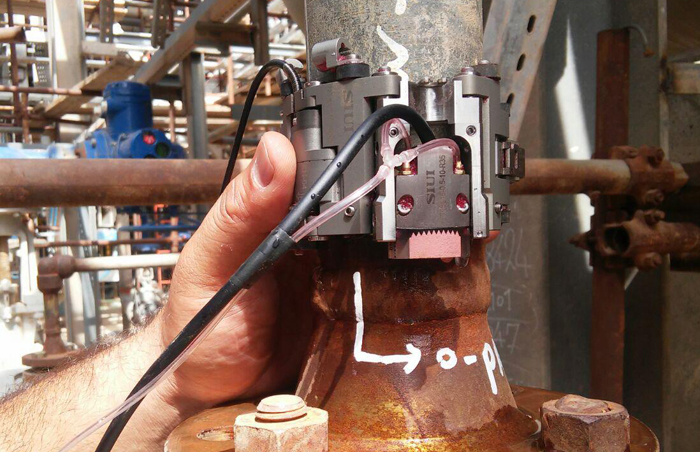

  • One-side inspection is suitable for elbow, pipe tee and pipe cap of pipe-to-component inspection


LPS-02


  • Dual-side inspection is suitable for covering the whole welds at one time of pipe-to-pipe inspection.



Low-profile Phased Array Probe

SIUI low-profile probes and wedges are compatible with Cobra from Olympus and Circ-it from Jireh.


Extensible: We can provide more crawlers to meet bigger pipe diameter.

×
