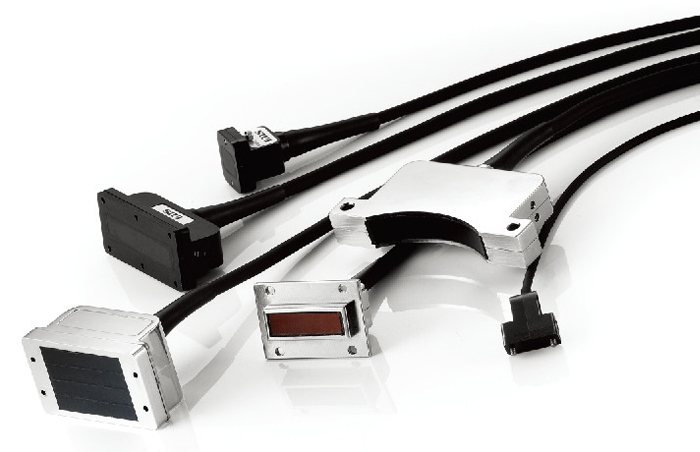

SIUI can provide PA probes with different connectors compatible with PA equipments from other manufacturers.


Universal Probes
Small/ Medium/ Large-Size & Low Frequency Probes

Superior Features:

Sound Beam angle,focusing and scan step can be electronically controlled;

Wide scan coverage can be achieved by one single probe;

Replaceable angle wedge and delay block, with customizable surface curvature;

Array pitch and elevation can be customized.


Immersion Linear Array Probe

Superior Features:

Sound Beam angle,focusing and scan step can be electronically controlled;

Wide scan coverage can be achieved by one single probe;


Immersion Curved Array Probe

Superior Features:

Adopt immersion method for inspection;

Sound Beam angle,focusing and scan step can be electronically controlled;

Wide scan coverage can be achieved by one single probe;

The curvature radius of curved probes can be customized;


Small-size immersion curved array probe

Large-size immersion curved array probe

High Penetration Probes

Superior Features:

Good resolution and high penetration;

Replaceable angle wedge and delay block, with customizable surface curvature;

Array pitch and elevation can be customized.


Small Footprint Probe

Superior Features:

Compact size;

Cable connectorcan come out from either the side or the top;

Replaceable angle wedge and delay block, with customizable surface curvature;

Array pitch and elevation can be customized.


Custom Phased Array Probes

SIUI can produce custom phased array probes to suit specific applications and geometries.


Flexible Probe

Superior Features:

Soft structure can be shaped to have better coupling stability to work on various work piece surface shape, especially curved surface.

With thickness less than 3.0mm, the probe can be used for limited space inspection.


Wheel Phased Array Probe


Low-profile Probe

Superior Features:

With theLow-profile PA probe, the probability of small defects detection in small pipe can be increased.


Matrix Array Probe

Superior Features:

Sound Beam angle,focusing and scan step can be electronically controlled;

Two types for selection: flat or curved;

Hard-to-reach area can be inspected;

Immersion matrixarray probe can be customized.


Near-Wall Probe

Superior Features:

Small blind zones in both edges;

Larger scan coverage can be achieved.

×
