Compact Phased Array & TOFD Crawler

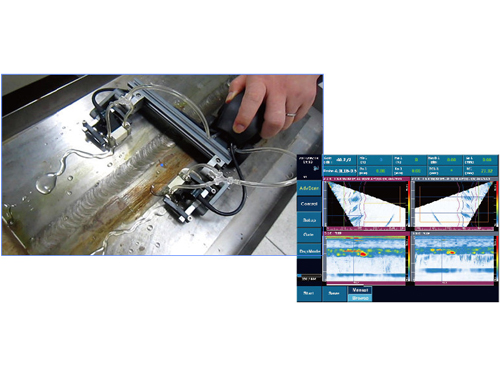

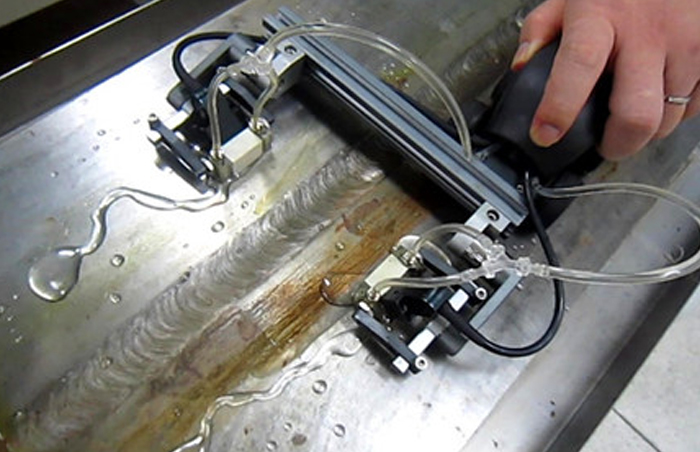

The Phased Array and TOFD crawler PTS-P05 is compatible with PA or TOFD ultrasonic flaw detector. It is suitable for phased array or TOFD testing on plates and pipe work pieces.

>>Product Enquiry

FeaturesFunctionGalleryDownload

  • The magnetic wheels can be attracted to the workpieces for easy operation.
  • Spring arm structure, which follows the tested surface, maintaining good coupling between the wedge and the tested work piece.
  • The probe fixed arm spacing is adjustable, which can be installed with wedges of various specifications to meet specific needs.
  • The position of the probe holder can be adjusted to the actual testing needs, convenient and flexible.

The Phased Array and TOFD crawler PTS-P05 has up to three combinations to meet different application requirements.

1-channel TOFD


1 phased array probe


2 phased array probes

The three combinations support irrigation wedges and non-irrigation wedges.

×
