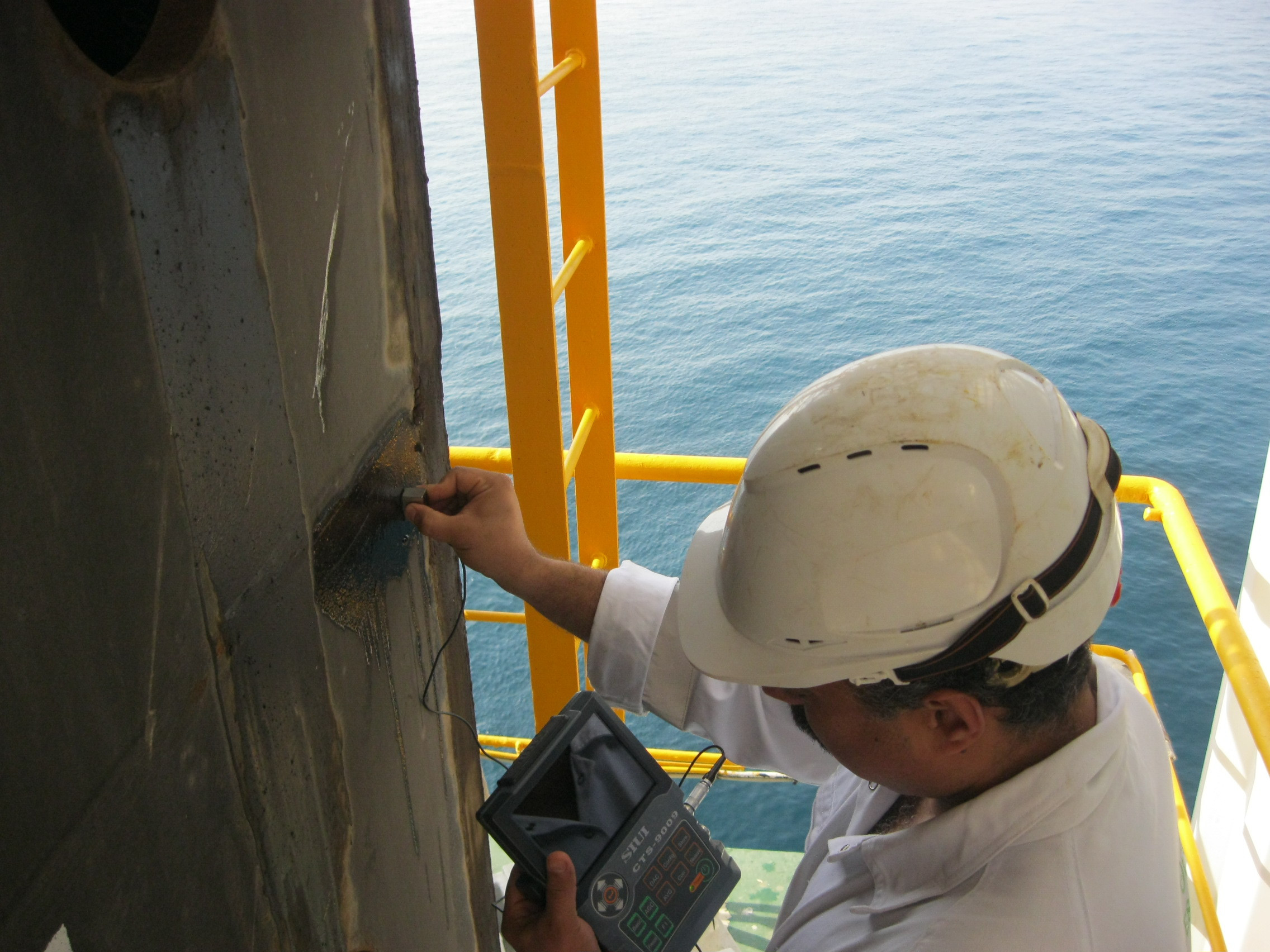

• Compact & Portable: The whole unit weight (battery included) is approx. 1.2kg, suitable for aloft and field work.
  • Easy to Use:There are just a few concisely-defined keys,easy to be operated with only one hand.
  • Environmental Protection:This system is designed based onIP65 (Optional IP67) standard,suitable for complex industrial flaw detection environment.
  • Super-low Consumption:The configured Li-polymer battery can support up to 7-hour continuous operation.
  • Strong Performance:High resolution and penetration,achieving precise flaw detection from thin plates to large forged pieces.
  • Complete Functions: Cineloop,probe frequency measurement,curved surface correction, RF display,USB storage, amplitude B-scan, AWSD1.1/D1.5, API 5UE evaluation standard.
>>Product Enquiry

FeaturesFunctionGalleryDownload

  • Max. sampling rate 240MHz; Measurement resolution 0.1mm.
  • Featured with AWS D1.1/D1.5 and API 5UE evaluation standards.
  • The gate magnifier function magnifies the echo area within the gate to the whole screen display.
  • Ethernet communication: Achieving real-time communication with a PC and remote control.
  • The convenient and useful probe echo frequency measure function enables the users to know the probe center frequency quickly,resulting in more precise flaw detection evaluation.
  • Operating frequency range: 0.5~15MHz, highlighting advantages of high sensitivity and broadband.
  • 20 ~2000Hz PRF with 10 steps adjustable: avoid reverberation signals during flaw detection.
  • Measure crack height by edge peak echo method.
  • RF (Radio Frequency) echo display: good to thin-wall material measurement,academic research or qualitative analysis.
  • The AGC (auto gain control) function, together with peak echo and image freeze function, help quickly identify the flaw highest echo,enabling efficient flaw detection.
  • The DAC curve works with echo compare function, making echo quantification of different distances and amplitudes more convenient.
  • Three different color schemes can meet the requirements of different application environments and habits.
  • Up to 500 sets of curve and waveform can be saved for various workpieces and flaw detection standards.
  • Support up to 11 kinds of language.
  • Thickness measurement  function available.

B-Scan function

Weld groove profile function

Up to 11 kinds of waveform colors for selection

Dynamic Cineloop

AVG/DGS Curve within Three Times of  Near Field

Probe Frequency Measure

Detection on Large Forged Pieces

RF Echo

×
