• High limit Sensitivity
  • Innovative Design
  • Compact & Handy
  • Easy Operation
  • Low Noise
>>Product Enquiry

FeaturesFunctionGalleryDownload

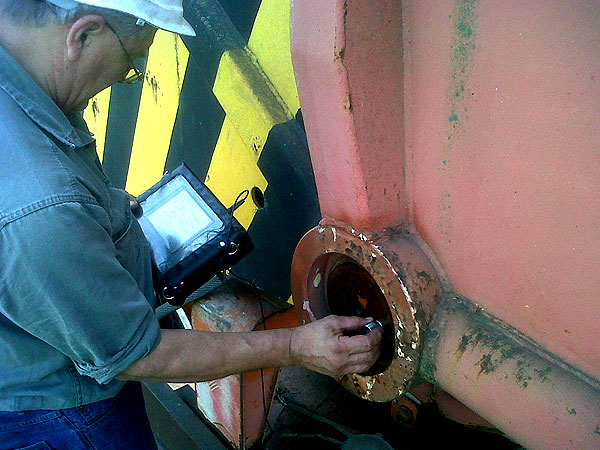

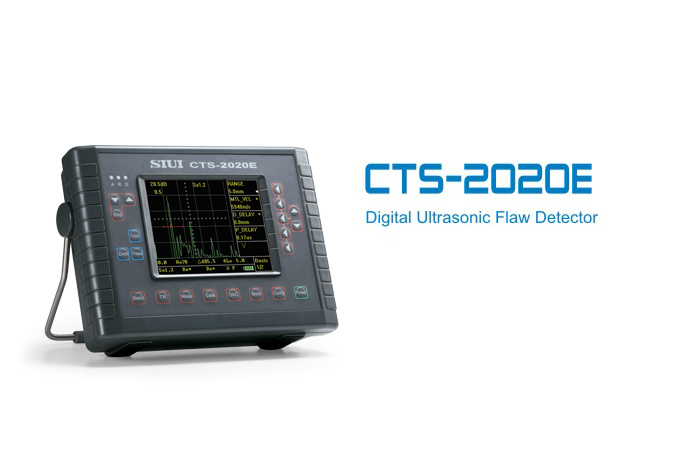

The digital ultrasonic flaw detector CTS-2020E is suitable for various detection demands, such as forged pieces, welding lines, steel structural parts and airplane parts.

  • Max. sampling rate 240MHz; Measurement resolution 0.1mm; Min. display range 5mm.
  • Operating frequency range: 0.5~10MHz, at least 62dB detection sensitivity surplus,highlighting advantages of high sensitivity and broadband.
  • USB port for saving system stored data and data waveforms to a USB disk,as well as easy printing detection reports.
  • Variable PRF: avoid reverberation signals during flaw detection.
  • Interface wave tracking function: Immersion detection or precision measurement can be easily achieved through the logic relation between gate A and B.
  • Peak value memory function: for quick scanning and measuring workpieces.
  • Complete DAC curve function: convenient for echo evaluation.
  • Probe angle (K value) measuring function.
  • Large memory for saving up to 500 data sets, including wave forms, curves,parameters,detection reports, etc.
  • High-brightness color TFT LCD, bringing optimized effect for reading measurement.
  • 10 waveform and character colors are available for selection.
  • Large capacity lithium battery pack for continuous operation over 6 hours.

Thin plates

DAC

Tracking function

Precision testing on flaws when using an angle probe

×
