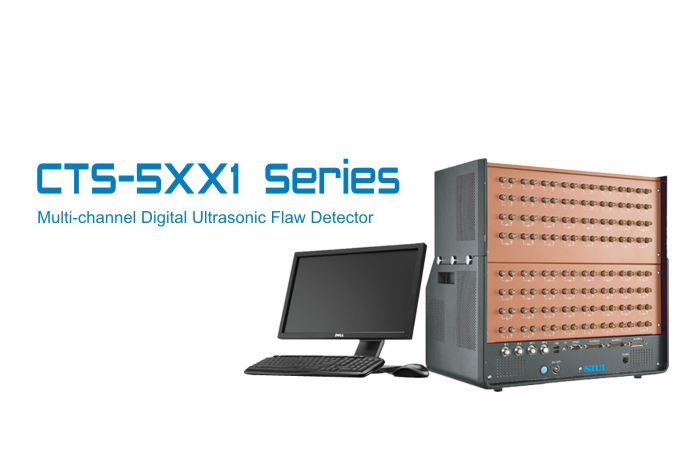

Based on PC platform and by working with probe detection and mechanical devices,the new series can achieve automatic ultrasound testing with high accuracy, reliability and high efficiency.

>>Product Enquiry

FeaturesFunctionGalleryDownload

  • It can support from 32 to 128 ultrasound channels (there are four types of housing for 32/64/96/128 channels).
  • Each PCB has 8 independent T/R channels.
  • For the same PCB, any transmission channel can combine with any receiver channel. Each PCB can have combination up to 8 groups.
  • For the same PCB, the channels work in turn. Different PCBs can work at the same time or work in turn.
  • Each ultrasound channel has conventional UT, with max. PRF up to 2.5KHz/channel.
  • High performance T/R front-end. Square wave transmission can be up to 500V.
  • Working frequency range: 0.5-20MHz.
  • High-speed digital signal processing and transmission.
  • A-scan real-time sound and light alarm function, passive measurement or marker interface, input and output control functions.
  • B scan full time recording, measurement and calculation, and movie replay functions based on time or encoder.
  • 2D rotary encoder connector.
  • Automatic inspection of beginning/ending sensor input control.
  • Data management and statistics functions.
  • Remote control function by PC through LAN connector.
  • Wifi transmission.

A scan measurement

B scan measurement

System setup

×
