  • 4/5/7-Step Block

Specifications:

ASTM E797

Calibration Function:

Straight Beam: thickness and linearity calibration, thickness gauging.

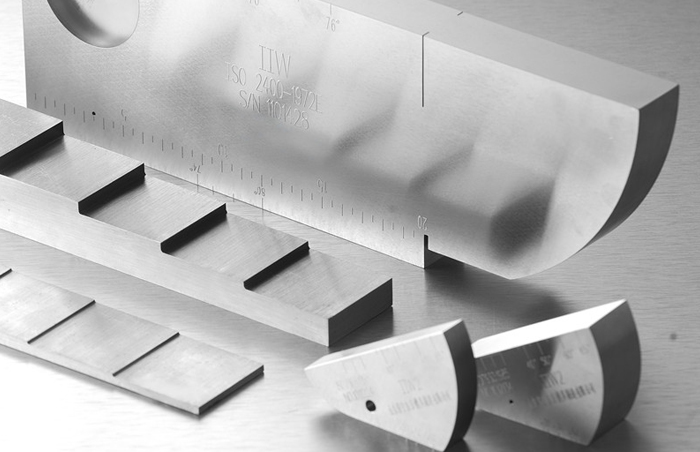

  • Calibration block No.1(V1)

Specifications:

EN12223

Calibration Function:

Calibration of shear and compression wave probes. Checking beam angle, emergent point and resolution. Calibration of time base and gain settings.

*We can provide V1 calibration block based on EN12223, BS2704, ASTM E164 and ISO 2400.

  • Calibration Block No.2 (V2)

Specifications:

EN27963

Calibration Function:

Small calibration block for on-site checking of miniature shear wave probe index, time base, beam angle and gain, engraved reference mark scales from 35 to 75 degrees.

*We can provide V2 calibration block based on EN27963, BS2704 and ISO 7963.

  • Phased Array Test Block Type A

Specifications:

ASME Code Cases 2541, 2557, 2558

Calibration Functions:

The Phased Array “Type A” Calibration Block is used during the initial setup and calibration of a phased array ultrasonic unit.

It can be used to perform tasks such as beam angle verification, calibration for wedge delay, sensitivity calibration, performing DAC/TCG for thickness up to 50 mm, and crack sizing.

  • Phased Array Test Block Type B

Specifications:

ASME CodeCases 2541, 2557, 2558

Calibration Functions:

The Phased Array “Type B” Calibration Block is used as baseline block to determine long-term instrument performance changes, generate DAC curves,

and evaluate linear/ angular resolution, focusing ability and beam steering capability.

  • Miniature Angle Beam (ROMPAS) Calibration Block

Specifications:

ASTM E164

Calibration Function:

Straight Beam: distance angle beam, index point, sound path angle (30°-70°).

  • DSC Distance/ Sensitivity Calibration Block

Specifications:

ASTM E164, AWS D1.1/D1.1M

Calibration Function:

Straight Beam: distance, amplitude. Angle Beam: index point, sound path angle (45°-70°),distance, sensitivity.

  • DC Distance Calibration Block

Specifications:

ASTM E164,AWS D1.1/D1.1M

Calibration Function:

Straight Beam: distance, amplitude. Angle Beam: index point, distance.

  • SC Sensitivity Calibration Block

Specifications:

ASTM E164, AWS D1.1/D1.1M

Calibration Function:

Angle Beam: sound path angle (45°, 60°, 75°), sensitivity.

  • DS Distance/ Sensitivity Calibration Block

Specifications:

AWS D1.1/D1.1M

Calibration Function:

Straight Beam: distance, horizontal linearity, sensitivity.

  • RC (AWS) Resolution Calibration Block

Specifications:

AWS D1.1/D1.1M

Calibration Function:

Angle Beam: resolution (45°, 60°, 70°).

  • IOW Beam Profile Block

Specifications:

API RP 2X

Calibration Function:

Angle Beam: beam profile (45°, 60°, 70°), probe angle.

  • ASME Basic Calibration Blocks

Specifications:

ASME BPVC-V (2010)

Calibration Function:

Used for establishment of primary reference responses for UT examination of welds.

  • ASME Basic Calibration Blocks for Pipe

Specifications:

ASME SEC V Ariticles 4 Fig.T-434.3

Calibration Functions:

The basic calibration block fabricated for customer supplied section of pipe of the same diameter, schedule, heat treatment and material type as the material being examined.

  • ASTM Area/ Amplitude (Set of 8)

Specifications:

ASME-E-127or ASTM-E-428

Calibration Functions:

Determining relationship comparisons of flaw size and echo amplitude.

  • ASTM Distance/ Area Amplitude (Set of 10)

Specifications:

ASME-E-127or ASTM-E-428

Calibration Functions:

Determining relationship comparisons of flaw size and echo amplitude.

  • ASTM Distance Amplitude (Set of 19)

Specifications:

ASME-E-127or ASTM-E-428

Calibration Functions:

Comparisons of distance amplitude relationships.

×
