Apogee 5300

New image processing software package renders obviously improved image quality of Apogee 5300. And value-added tools allow clinicians to easily practice confident scan across different applications.


※ This product is for market outside mainland China
     本产品仅面向中国大陆以外市场

>>Product Enquiry

FeaturesFunctionGalleryDownload

Fusion THI 2.0
ba
sed on the new generation of inversion tissue harmonic, Fusion THI 2.0 integrates fundamental wave and harmonic wave in the far field. With greatly enhanced tissue harmonic wave, it delivers penetration-improved image by effectively increasing image resolution and tissue contrast.


                                              Fusion THI                                                                                                 Fusion THI 2.0


Xbeam
The upgraded Xbeam is a new processing mode ba
sed at the front end of ultrasound beamforming. With steerable beam angle and the high frame rate, it effectively increases the spatial resolution and reduces tissue shadow. Xbeam applies to most kinds of probes.




Xbeam off                                                                                                   Xbeam on

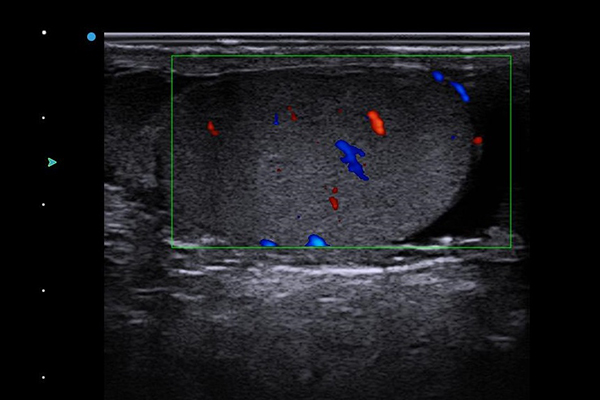

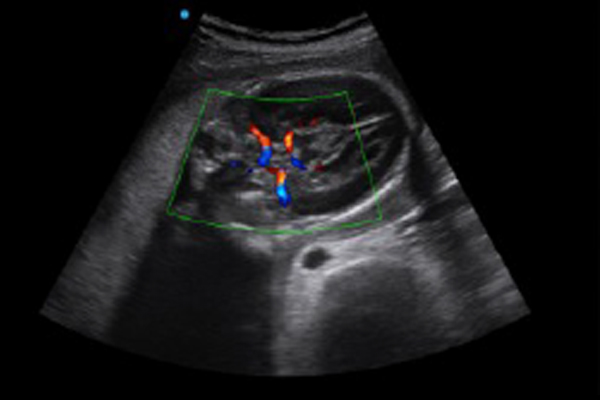

VS Flow
SIUI VS Flow is a high spatial resolution Doppler flow imaging technology. 30% more side signals is collected to enhance the whole flow sensitivity especially the slow velocity flow.

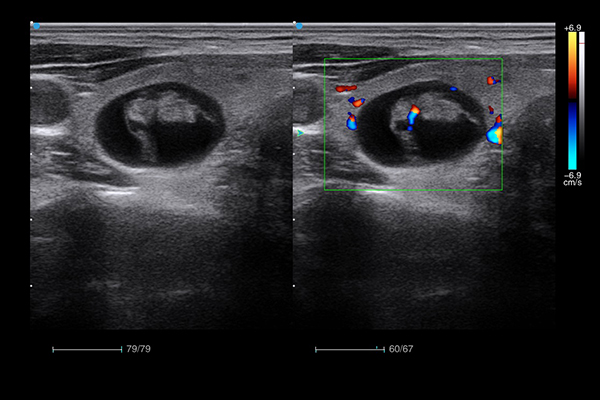

                                   Conventional Flow                                                                                          VS Flow

Balanced echo compensation
The upgraded Apogee 5300 transplants Balanced echo compensation technology from the high-end platform. It effectively compensates the weak echo signals and restrains the hyper echo signals according to the gray scale distribution, and delivers much more uniform image.



                                                   Balanced echo off                                                                                     Balanced echo on


5Q probe technology

SIUI’s 5Q probe technology refers to five technologies that improve the image quality, including high-performance PZT crystal materials, crystal cutting technology, element spacing filler, multiple matching layer technology and optimized sound field wave. All these technology integrated to increase the probe bandwidth, and enhance its sensitivity as well as resolution.

Needle enhancement facilitates visualized practice.



Semi auto EF enables efficient diagnosis.


                     Points Only                                   Auto Trace                                                   4Ch Diastole                          4Ch Systole

Auto IMT accomplishes accurate assessment.



4D nSlice / Any cut / Opti-4D carries out effortless scanning.


                                                   nSlice                                                                                                           Any Cut


Due to differences in local regulatory requirements and sales policies, some product features may not be available in your region. This page is for reference only, and the actual situation of products shall prevail.

×
