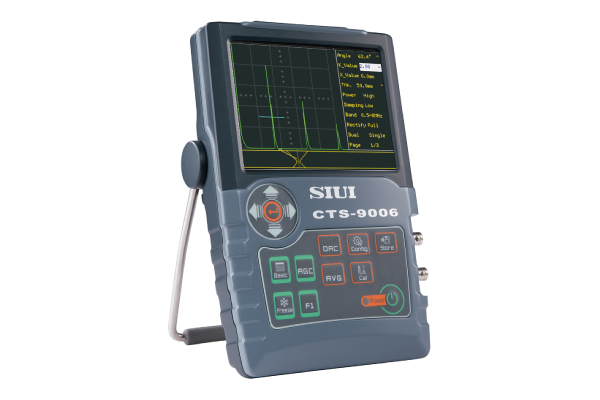

CTS-9006

  • Compact & Portable: The whole unit weight (battery included) is approx. 1.2kg, suitable for aloft and field work.
  • Easy to Use:There are just a few concisely-defined keys,easy to be operated with only one hand.
  • Environmental Protection:This system is designed based on IP65 standard,suitable for complex industrial flaw detection environment.
  • Low Consumption: The configured Li-polymer battery can support up to 7-hour continuous operation.
  • Strong Performance:High resolution and penetration, achieving precise flaw detection from thin plates to large forged pieces.

>>Product Enquiry

FeaturesFunctionGalleryDownload

  • Max. sampling rate 240MHz; Measurement resolution 0.1mm.
  • Operating frequency range: 0.5~10MHz.
  • 20 ~ 2000Hz PRF (step: 20Hz): avoid reverberation signals during flaw detection.
  • The AGC (auto gain control) function, together with peak echo and image freeze function, help quickly identify the flaw highest echo,enabling efficient flaw detection.
  • The AVG/DGS curve can make three curves of different equivalent values with one known flat-bottom hole or large flat-bottom echo.
  • The DAC curve works with echo compare function, making echo quantification of different distances and amplitudes more convenient.
  • The 5.7" color TFT LCD of wide viewing angle, high brightness and high definition delivers every clear detail.
  • Peak memory function facilitates quick scanning and measurement on workpieces.
  • Probe angle (K value) measuring function.
  • Three different color schemes can meet the requirements of different application environments and habits.
  • Up to 300 sets of curve and waveform can be saved for various work pieces and flaw detection standards.
  • Support up to 9 kinds of  language.
  • AWS D1.1/D1.5, API and TCG functions are optional.

Weld groove profile function

Up to 11 kinds of waveform colors for selection

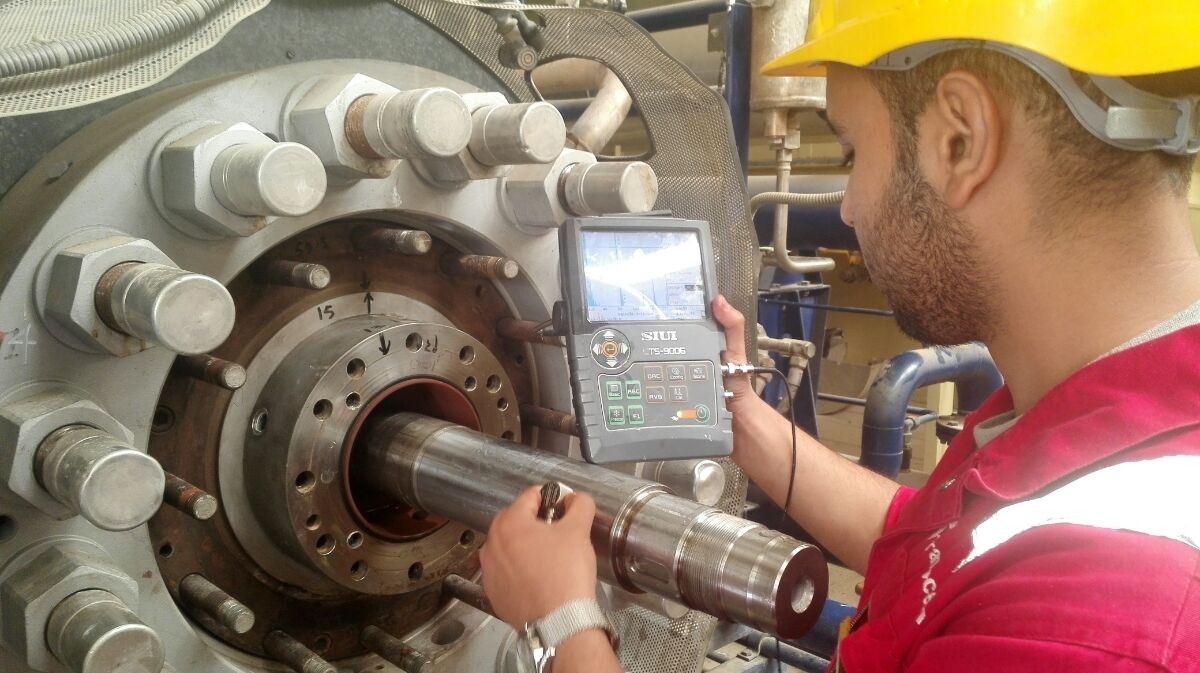

Detection on Large Forged Pieces

AVG/ DGS Curve

DAC Curve

Peak Memory

Data Storage

×
