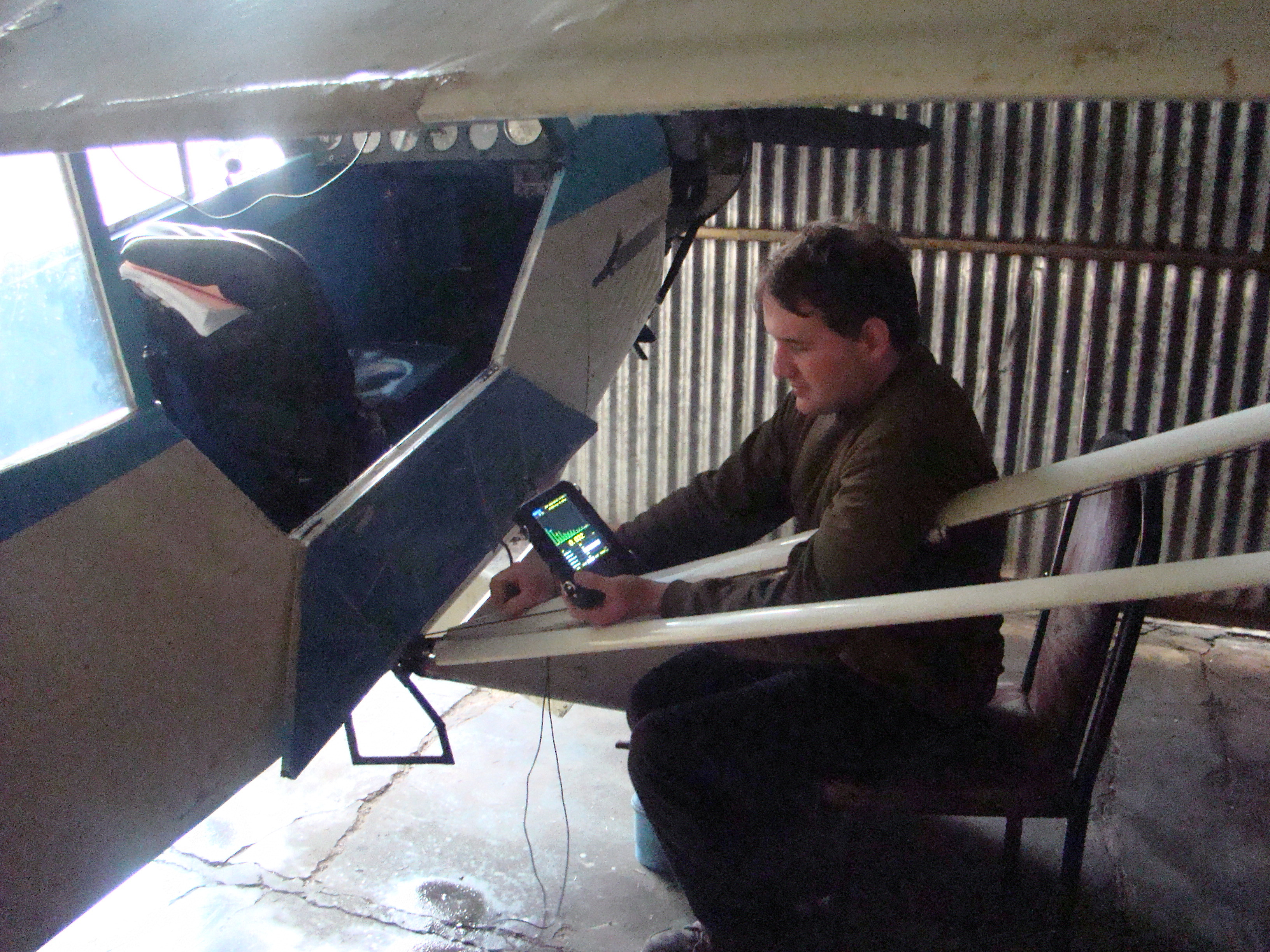

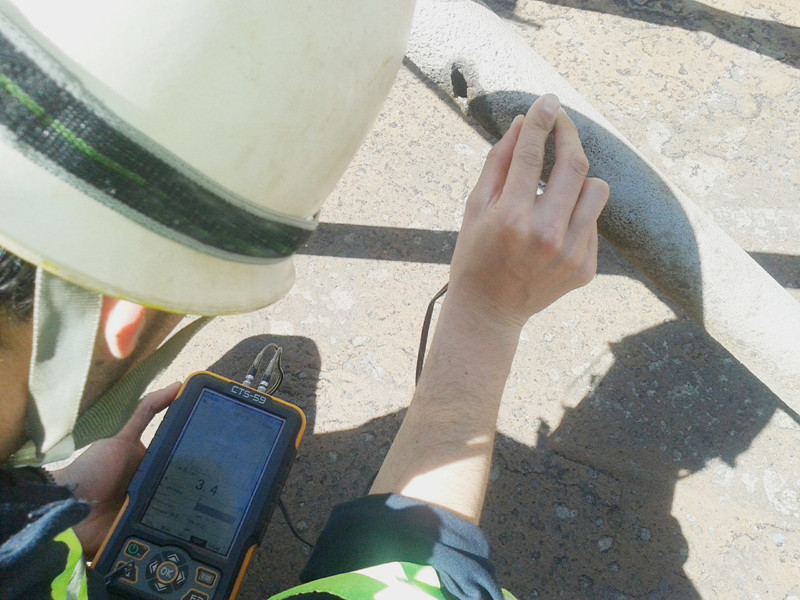

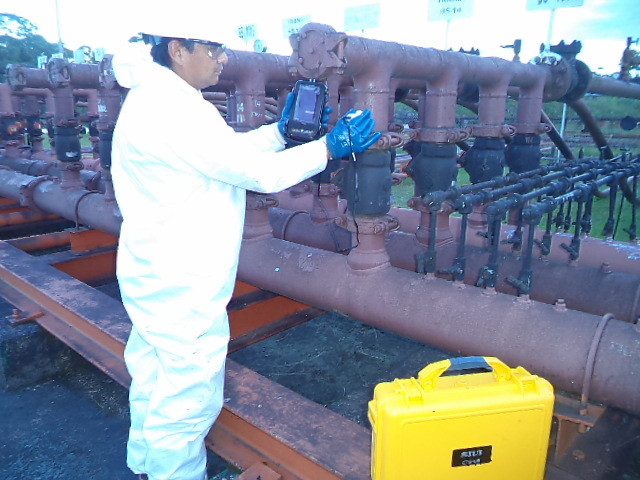

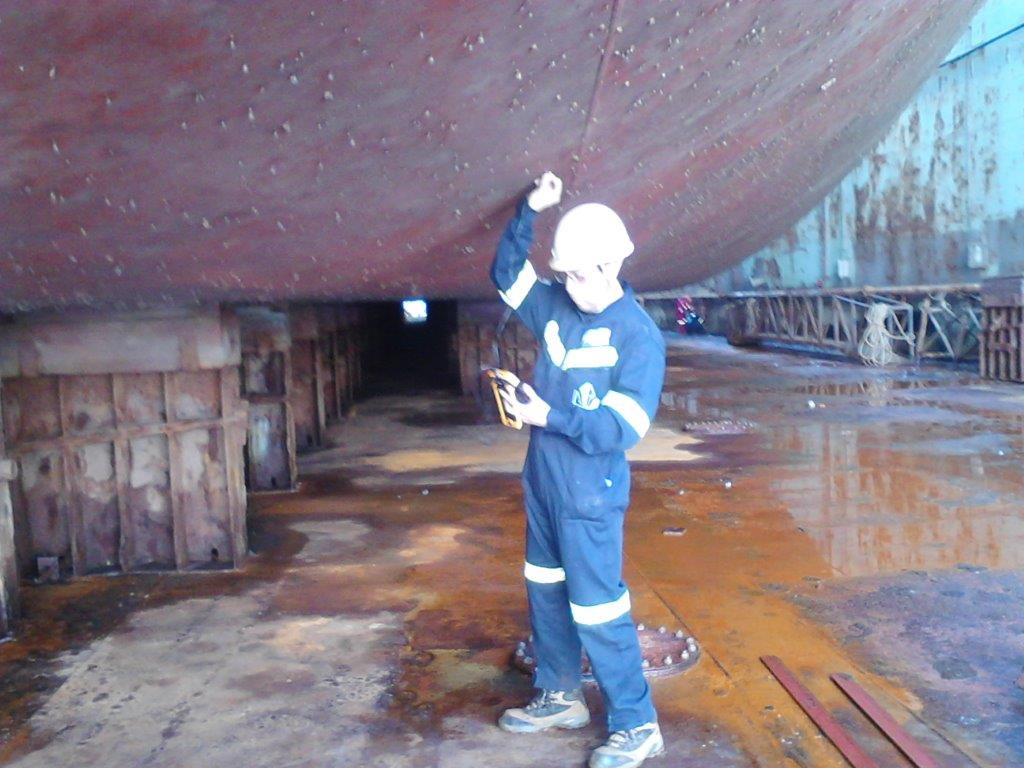

• Corrosion Application
• Compatible with different kinds of probes.
• Measurement range: 0.5~600mm.
• Compact size and weighs only 0.6kg including battery.
• 5” high resolution color TFT-LCD monitor with high-brightness LED backlight (visible under sunshine ),800x480 pixels.
• Auto search function can automatically adjust display delay, display range, gain and measurement gate based on the detected echo.
• Normal (R-B1, transmission pulse to the first echo), velocity measurement,through coating measurement or echo to echo (B1-B2, or Bm-Bn), coating measurement functions available.
• One-point, Two-points and Fast Zero point calibrations available.
• Single and dual element probes for selection. CTS-59 can support dialogue thickness gauge probe to realize probe auto-recognition function, which can reduce display measurement data error.
• A/B scan functions.

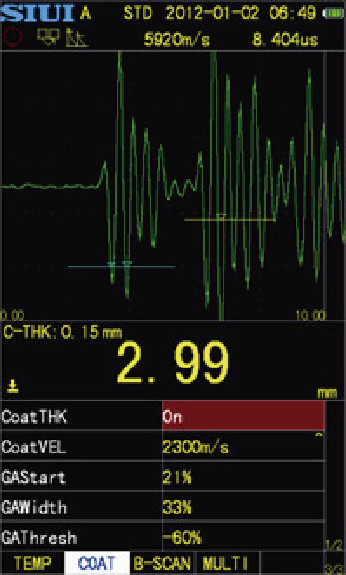

COAT Measurement Function

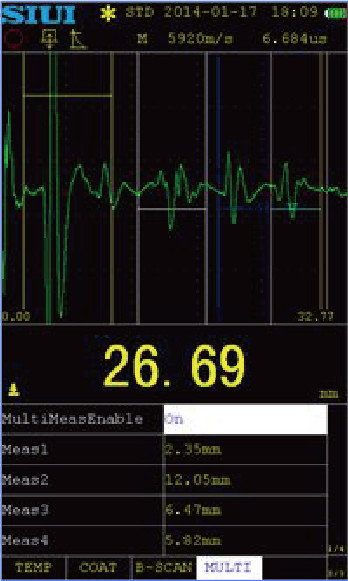

MULTI-Layers Measurement Function

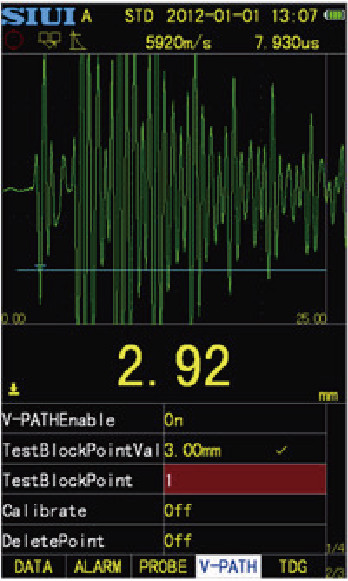

V-PATH Function

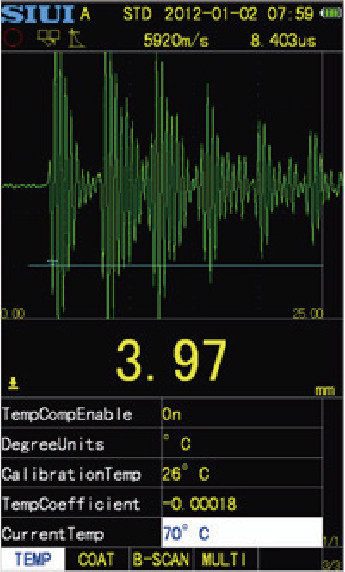

TEMP Function

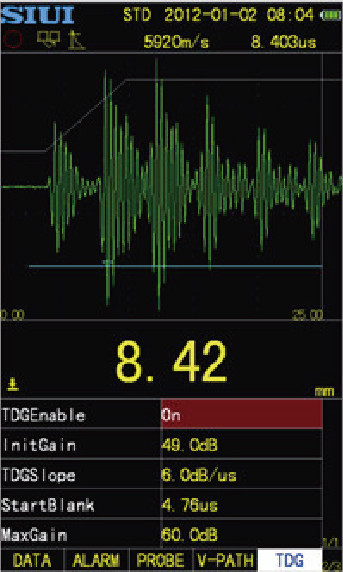

TDG Function (Time Depth Gain Function)
