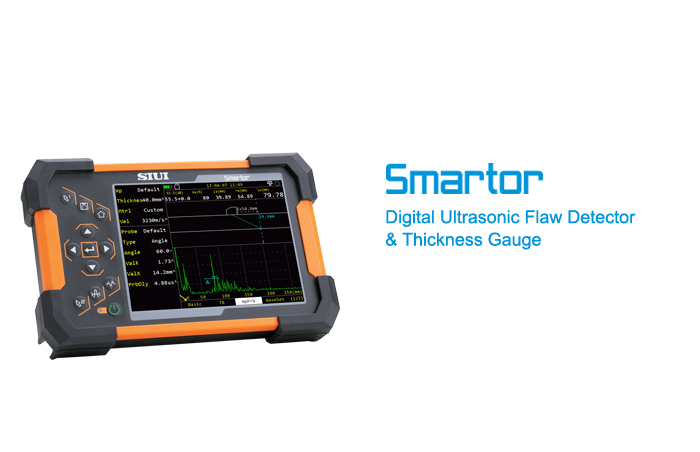

Smartor

One-hand Operation
Smart Test Wizard
Weld Simulation
Advanced Conventional UT & Thickness Measurement

>>Product Enquiry

FeaturesFunctionGalleryDownload

●  High IP rate: IP 66
●  Compact size: 198 (W)* 128 (H) *520 (D) mm
●  Light weight: 0.9kg only, including battery
●  5.7" LCD with high resolution 640×480 pixels
●  Adjustable pulse width, negative square wave transmission is up to 350V.
●  Operating frequency range: 0.5~20MHz, multiple steps of wide broadband and narrow-band for selection.
●  Easy operation: only a few buttons, well-defined intuitive interface, support right-hand and left-hand operation, outdoor mode.
●  Multiple conventional UT functions
        -Weld, plate and forging test wizards are available, which can guide users to perform setup easily and improve inspection speed.
        -Peak memory, DAC curve, AGC (auto gain control), video record makes convenient and efficient flaw inspection.
        -Optional functions such as B-scan, TCG, probe spectral analysis, CSC (curved surface correction), weld simulation, crack height measurement are available.
        -Featured with AWS D1.1/D1.5 and API 5UE evaluation standards.
●  Multiple thickness measurement functions
        -Standard A-scan thickness measurement(through coating measurement, echo to echo mode)
        -Auto-search, velocity measurement, alarm and dataset management are available.
        -Optional functions: coat thickness measurement, B-scan, multi-layer measurement, V-PATH, TDG and temperature compensation.
●  -System ports: encoder, VGA, standard SD card, USB
●  EN12668-1: 2010(for UT) & EN15317-2007(for TG) compliant

Conventional UT Function

Test Wizard


B-scan


DAC Curve


AVG/DGS Curve


Weld Simulation


Probe Spectral Analysis


Thickness Measurement Function

B Scan


Through-coating Management


Data Set Management


TDG (Time Distance Gain Curve)


TempComp Function


V-PATH Function

×
