CTS-9D

Triple Control
Upgraded Panel Keys
Touchscreen Operation
Voice Interaction


>>Product Enquiry

FeaturesFunctionGalleryDownload

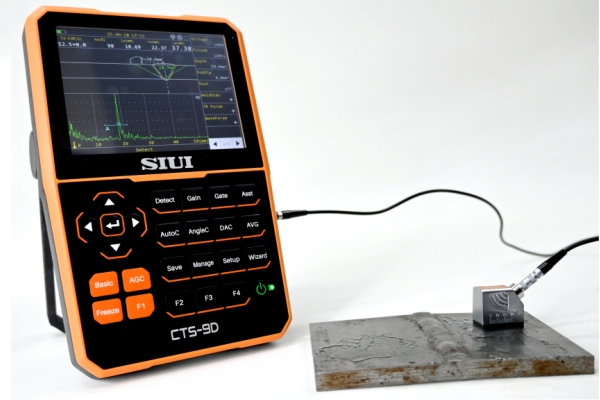

CTS-9D is a triple-control ultrasonic flaw detector, supporting keys, touchscreen operation, and voice command for versatile use in any environment.
● Expanded to 25 Keys to boost inspection efficiency.
● The touch interface with optimize menu layout, achieves intuitive and fast touch operation.
● Featuring voice control function for rapid parameter adjustment, enables hands-free operation.
● Seamless data transfer between internal storage, USB drives, and UltraCloud Drive.
● The camera captures images of the current working environment when saving parameters, storing them together with the parameter file to maintain traceable correlation between the inspection settings and the actual physical conditions.
● The 640MHz/12bit sampling frequency enables finer ultrasonic signal acquisition, preserving more original signal details to improve detection of small flaws.

CTS-9D supports advanced UT and TG functions to enhance inspection capabilities.
● UT Functions
Standard: DAC, TCG, CrackMeas (crack height measurement), FFT (probe spectral analysis), CSC (curved surface correction), AWS, API 5UE, FlatWeldSim (flat weld simulation)
Optional: BEA (backwall echo attenuator), B-Scan, C-Scan
● TG Functions
Optional: Thickness Measurement (TG ECHO included), CoatMode, Vpath, TDG (Time Distance Gain Curve), B-Scan, TempComp(temperature compensation), Multilayers

UT Flat Weld Simulation


UT B-Scan


UT C-Scan (2 axis)



×
