CTS-800

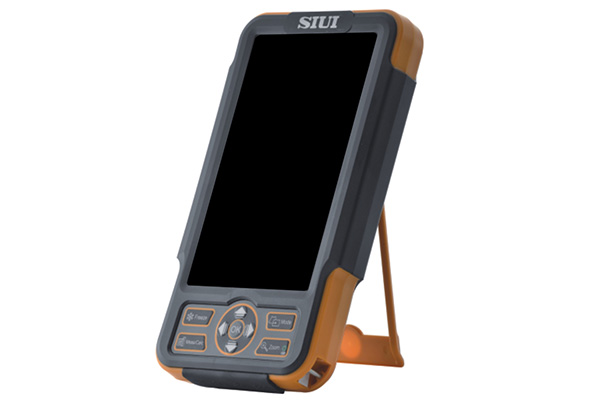

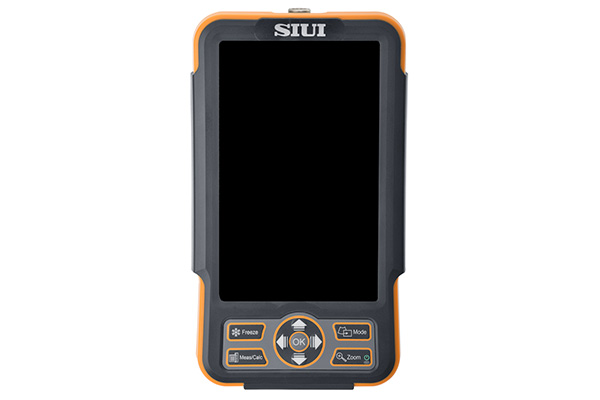

CTS-800 is a palm-sized veterinary ultrasound system.

>>Product Enquiry

FeaturesFunctionGalleryDownload



Monitor: 7-inch WVGA LCD monitor


Weight: 0.8kg


Environmental rating: IP54 (main unit) IP67 (probe head)


Battery: 3 hours operation time


Display mode: B 2B ZOOM B B/M M


Depth: Max to 250mm


B gain: 0-100


Image storage: 256 frames


Cine loop: 256 frames

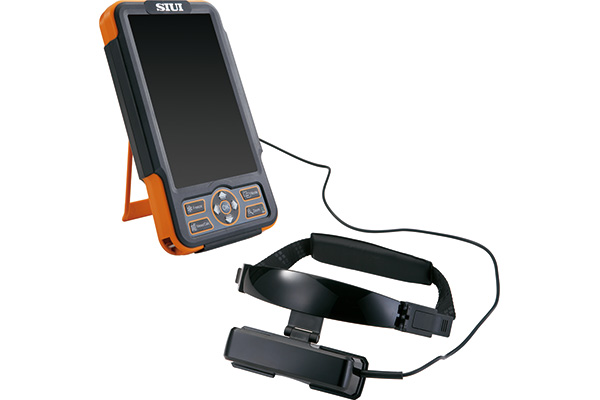

Probe: L50/7.5 MHz linear rectal probe (standard)

            L65/5.0 MHz linear rectal probe (optional)

            R20/5.0 MHz micro convex probe (optional)

Gravity Sensor: You can operate the ultrasound system either in transversal layout or vertical layout. It can automatically adapt to two different layouts when you rotate it.


Grid for estimation: With grid on the image area you can easily estimate the size of the target substance like follicle fertilized egg etc.

×
