PA & TOFD Crawler for Medium & Large Pipe Welds CPS-01/ 02

IP68
Special Chain Design
Real-time Coupling Monitoring
Support up to 2 PA+2 ch-TOFD

>>Product Enquiry

FeaturesFunctionGalleryDownload

CPS-01

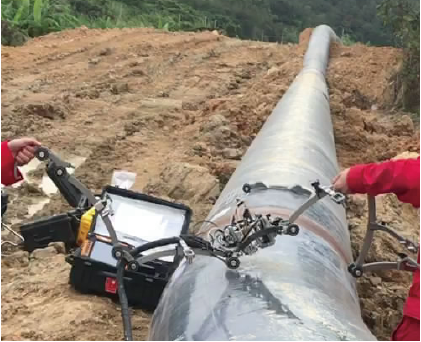

CPS-01 is suitable for circumferential weld inspection on long-distance pipeline with OD 1000-1300mm (39.38-51.18 inch).


  • IP68, waterproof, rust-free and CE-compliant.
  • Double wheel chains straddle the weld to ensure stabling.
  • Easy buckle design for quick change links to adapt to different pipe diameters.

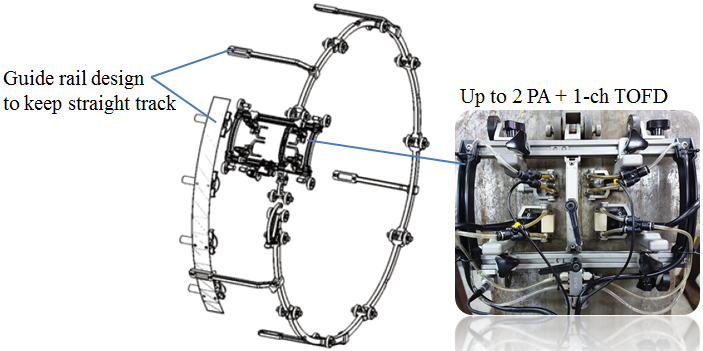

  • Chain plus guide rail design to keep straight track and ensure the testing accuracy.
  • High elastic rubber wheels to achieve stable probe movement.
  • Flexible structure, the truss can be setup without disassembling the chain.
  • Manual or automatic water irrigation device to maintain water output for good coupling.

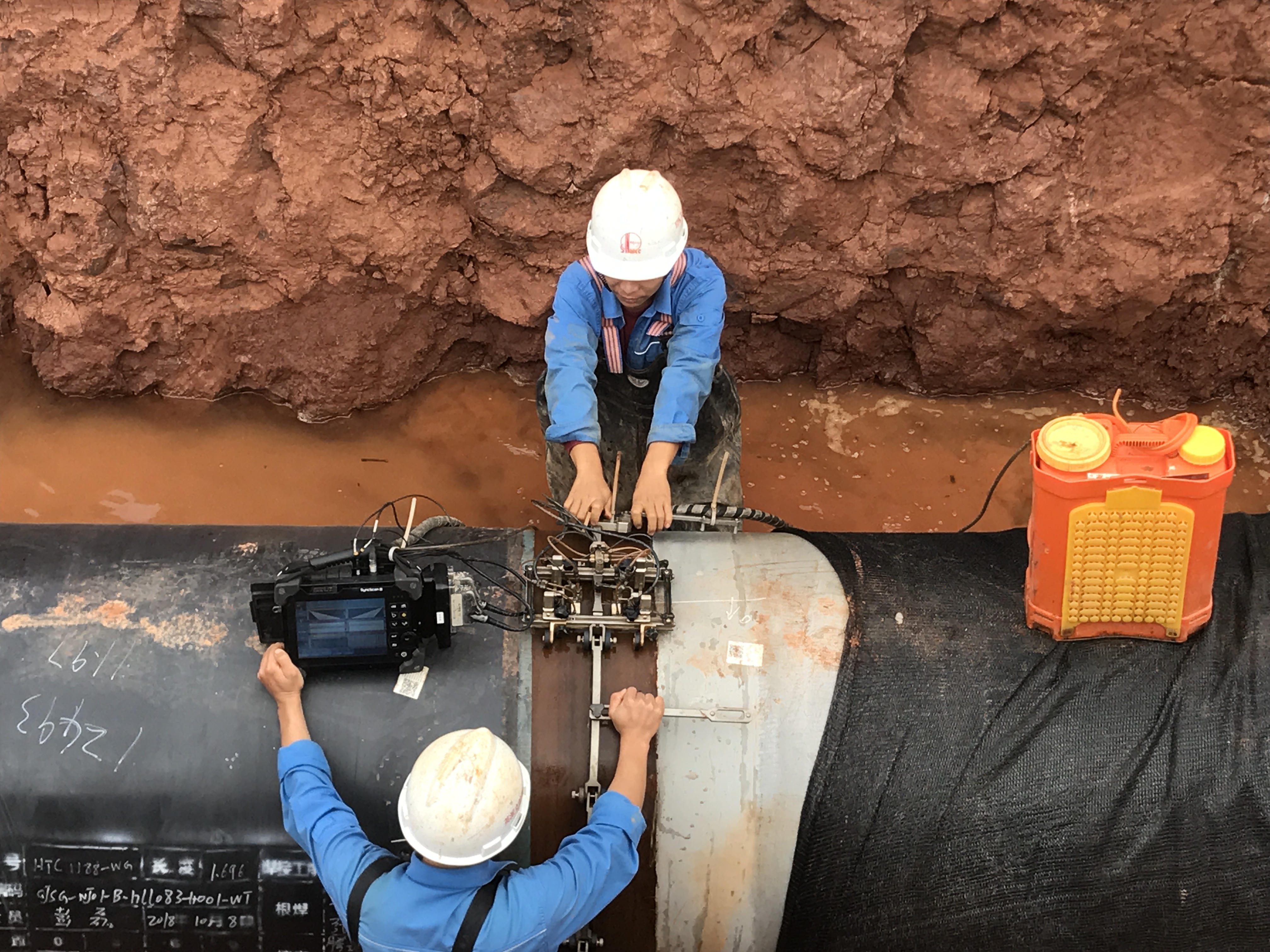

                                                     Manual Scanning

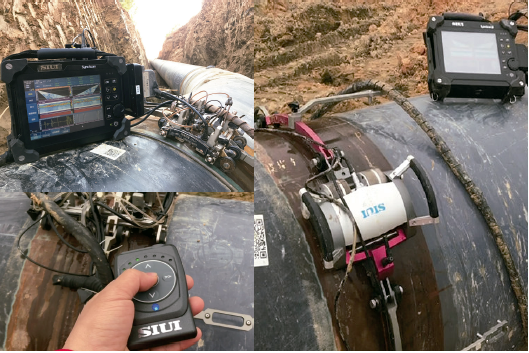

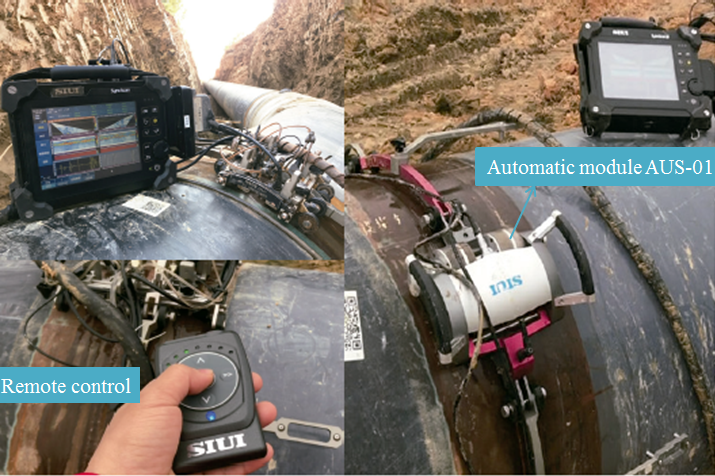

                                                Automatic Scanning

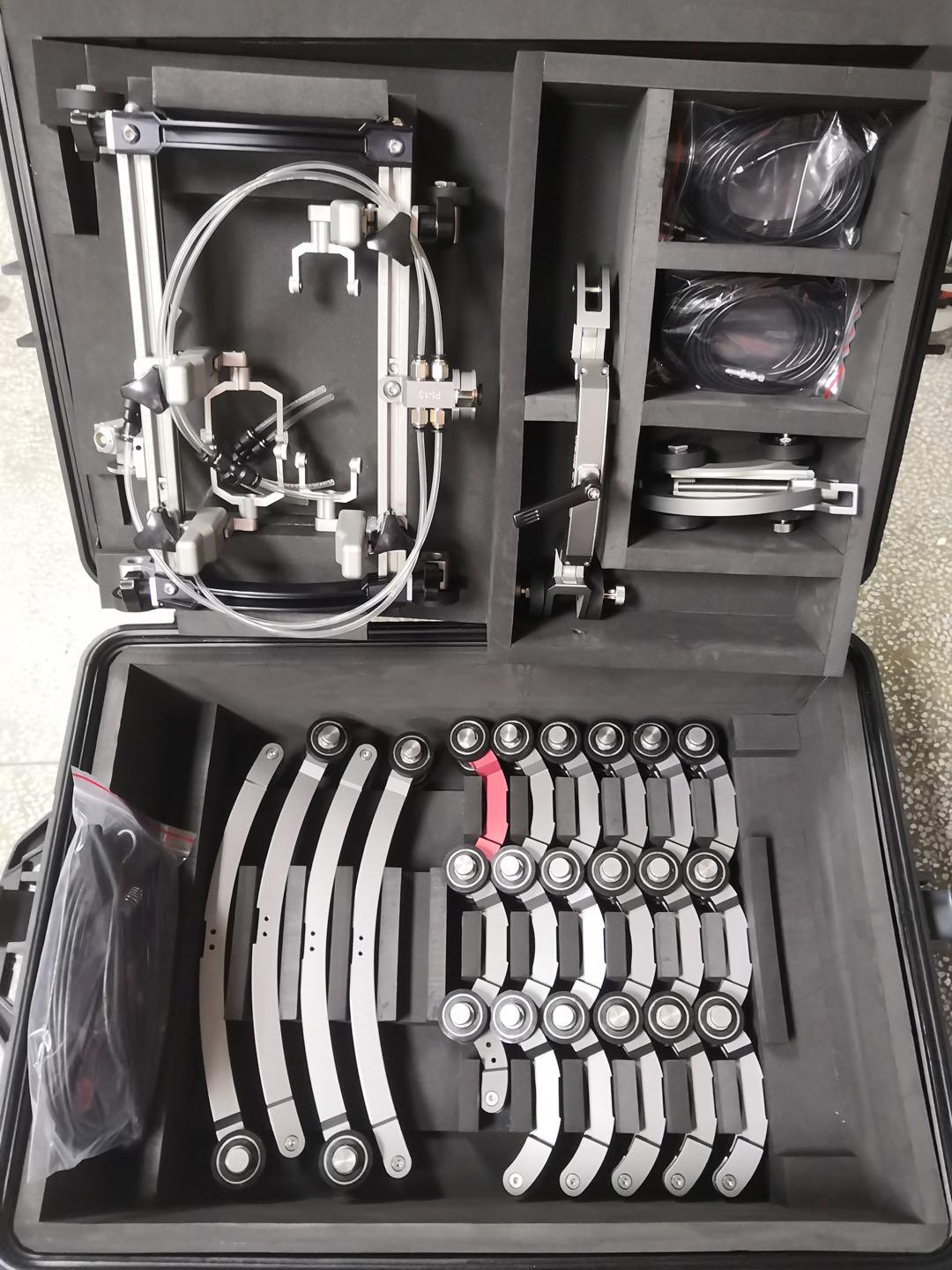

                                  Easy carrying without disassembling the whole chains.

Application note: PAUT & TOFD Solution for Long-Distance Pipeline


CPS-02

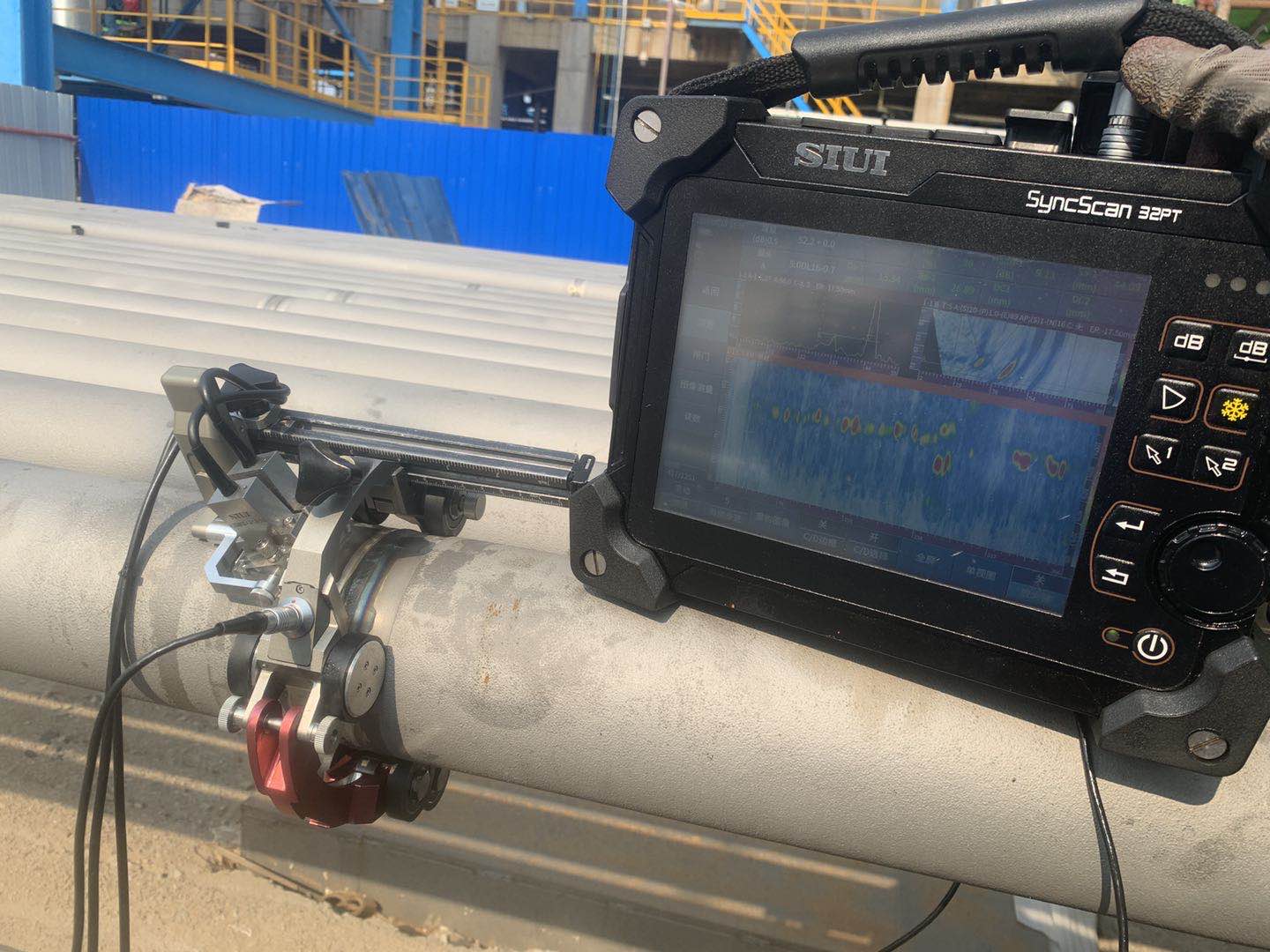

CPS-02 series is suitable for circumferential weld inspection on medium & large pipe welds with OD 100-1000mm (3.94-39.37 inch) and higher wall thickness.

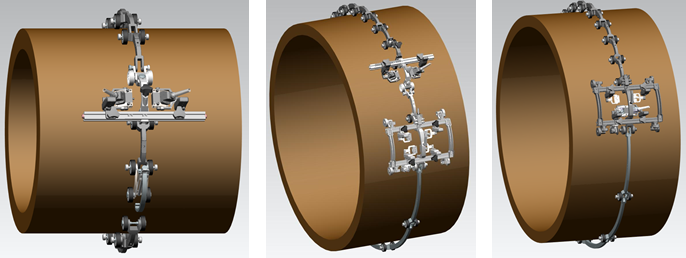

3 Models for different configurations:

                    2PA or 1-ch TOFD                                          Up to 2PA+2-ch TOFD                            2PA+1-ch TOFD


  • IP68, waterproof, rust-free and CE-compliant.
  • High-strength aluminum alloy material, strong and lightweight.
  • Double wheel chains straddle the weld to ensure stabling.

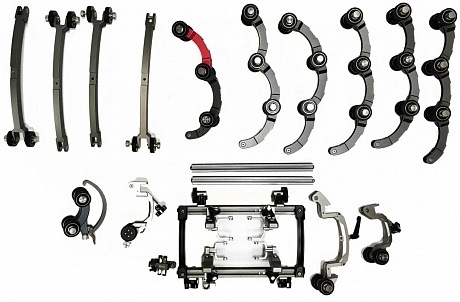

  • Easy buckle design for quick change links to adapt to different pipe diameters.
  • High elastic rubber wheels to achieve stable probe movement.
  • Flexible structure, the truss and crossbeam can be setup without disassembling the chain.
  • Manual or automatic water irrigation device to maintain water output for good coupling.


Application note: PAUT & TOFD Solution for Medium to Large-diameter Pipe


Application notes:
PAUT & TOFD Solution for Long-Distance Pipeline
PAUT & TOFD Solution for Medium to Large-diameter Pipe
